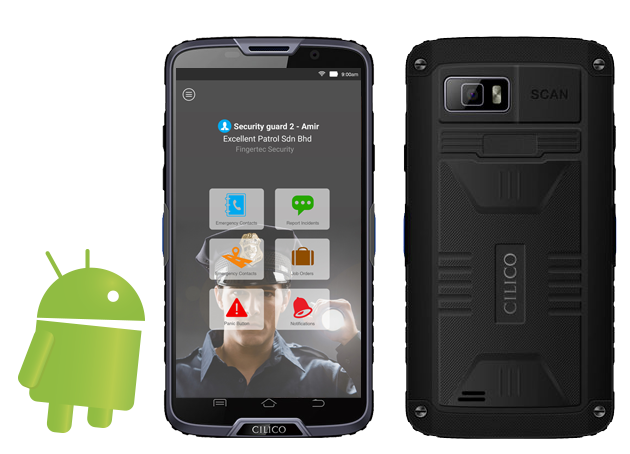

TimeTec RD5
Android Industrial Rugged Tool
TimeTec RD5 is a powerful Industrial Android tool based on Android 5.1. with 1.3 GHz Quad-core CPU, Dual-SIM and 4G communication, providing enterprise class security and device management, as well as enterprise data capture capabilities. The device designed for convenience but built for the enterprise. With 8 MP camera, Near-field communications (NFC), GPS+BDS, 4G/LTE, Bluetooth integrated, infra-red and PSAM Encryption, TimeTec RD delivers real-time connectivity and best-in-class data capture capabilities. Having a 1280*720dpi high resolution, 5" large screen and a 2GB RAM+16GB Flash Memory, TimeTec RD offers robust application performance at better speed and power.

TimeTec Patrol can be used within any NFC infused smartphones while TimeTec RD5 is an option aimed at companies looking for a robust and rugged device in relation to the security guards touring purposes.
Rugged & Durable
The body of TimeTec RD5 is thick enough to endure drops up to 1.5m on a concrete surface and the device has an IP65 rating for dust and water resistance.
Android OS Enterprise-Class
TimeTec RD5 provides an enterprise data capture support, enterprise class security, device management and business class Wi-Fi connections for enterprise class use in many industries.
HD Screen for Better Viewing
TimeTec RD5 is installed with 5" high-definition multi-touch screen that has a resolution of 1280*720 dpi, making operation easier and visibility stronger, easy to see even in any bright sunlight.
Easy Wireless Communication
TimeTec RD5 supports Dual-SIM 4G, Blind-mate and Seamless roaming. Works freely in WCDMA and TD-SCDMA 4G networks, this can realize high-speed data transmission. Support Bluetooth 4.0+EDR and more types of devices connection.
Sizeable Memory Capacity
RD5 comes with a 2GB RAM+16GB Flash Memory and there is a slot for a micro SD card expansion to 32GB
Environmental Sealing
It also operates at extreme temperature between -25C to 60C, and the screen can be accessed even with thick gloves.

Best Battery Life
Equipped with a 4000mAh large capacity Lithium battery that ensures device fully operational for approximately 20hours, more than enough to cater to long work shifts.
Convenience Flexi Charging
Provides an option of 3 slot devices & battery chargers to fulfill backroom lack of space requirements, it also comes with wired charger and cradle charger for flexibility.

Best Audio Quality
TimeTec RD5 has dual front-facing speakers that delivers amazing audio better than the regular smartphones and it is equipped with 2 microphones and noise cancelling technology to ensure clear audio at all times.
Pocketable Design
The device is small, pocketable yet powerful, and it comes with a stretchable wristband to reduce user fatigue .
Data Sheet:
Basic Parameters
Type IOT Handheld Terminal
CPU Quad-Core ARM Cortex A7 1.3GHz
Graphics Processor Mali760-MP2
Memory 2G LPDDR2 RAM+16G EMMC ROM
OS Android 5.1
Color Black and grey
White and blue: use antibacterial material, especially for healthcare industry
Display 5'' high-resolution Multi-touch screen; Resolution: 1280*720 dpi
Input Method Handwriting 、Stroke、Pinyin input method
Communication GSM / WCDMA / FDD / TDS / TDD; GSM Quad Band, TDS B34/39, WCDMA B1/2/5/8, TDD B38/39/40, FDD B1/3/7/8/20
GPS Built-in GPS, support A-GPS, GPS+BDS, Meter Level Localization
Port Micro USB2.0, support OTG
Memory Interface Micro SD card, expansion: 2G to 32G
Bluetooth Bluetooth 4.0+EDR
Speaker Single speaker、8±15% ohm
WLAN Support 2.4G+5G, Support 802.11a/b/g/n mode and WEP. WPA/WPA2-PSK/WAPI PSK/802.1*EAP Encryption protocol
Camera 8.0 Mega Pixel rear camera; 2.0 Mega Pixel front camera; Auto focus; with LED light
Battery Li-Polymer 4000mAh
Standby Time One week
Duration 20 hours ( full function )
Certification/ Protection 3C、CE / IP65
IOT Functions (RFID, Barcode)
IOT Barcode 1D Laser Scanning module、2D Scanning module
1D Barcode Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codebar, Interleaved 2 of 5, China post 25, ISBN/ISSN, Code93, UCC/EAN-128, GS1 Databar, HIBC, etc
2D Barcode Honeywell / MOTO 2D Scanning module; Support both 1D and 2D; Support Code: QR,PDF417 Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codebar, Interleaved 2 of 5, China post 25, ISBN/ISSN, Code93, UCC/EAN-128, etc
IOT RFID * Fully support NFC. Support 14443A/B、15693 Protocol, Reading Distance 2cm~5cm, reading position, battery cover.
* Built-in UHF RFID (EPC C1/G2, 18000-6C Protocol), reading and writing tags (optional).
Working Conditions
Operation Temperature -25 ~ 65 ℃
Storage Temperature -30 ~ 70 ℃
Humidity 0 ~ 95%
Product Features
 Gravity Sensor Support  Light Sensor Support
 Distance Sensor Support  Receiver Support
 Microphone Support  Headset Support
 Vibrator Support
Model Optional Standard
C5S Series • 1D Laser Scanning module
• 2D Scanning module
• UHF RFID
SQuad-Core、NFC、Bluetooth 4.0、WIFI2.4G+5G、GPS+BDS、CDMA GSM、8.0 Mega Pixel rear camera、2.0 Mega Pixel front camera
